Understanding DENCLUE: Density-Based Clustering Algorithm In Distribution Functions


Clustering is a fundamental task in data mining and machine learning. It involves grouping similar objects together based on their characteristics or attributes. The goal of clustering is to find natural groupings in the data that can provide insights into its underlying structure.DENCLUE (Density-Based Clustering) is a popular clustering algorithm that uses density distribution functions to identify clusters in high-dimensional datasets. In this blog post, we will explore the concept of DENCLUE and how it works. For an in-depth understanding of DENCLUE clustering method, our Data scientist course online helps you explore more about DENCLUE clustering, the most effective tool of data science.

What is DENCLUE Clustering?

DENCLUE is a density based clustering algorithm that was developed by Hinneburg and Dza̧kowski in 1999. The main purpose of DENCLUE is to identify clusters in high-dimensional data sets where the clusters may be irregularly shaped, overlapping or have different densities. Unlike traditional clustering algorithms such as k-means, which rely on distance measures between points for clustering, DENCLUE uses local density estimation to identify areas of high-density regions within the data set. This approach allows it to handle noise and outliers more effectively than other methods.

One advantage of using DENCLUE over other clustering algorithms is its ability to detect non-spherical clusters with varying densities accurately. For example, suppose we have a dataset containing multiple groups with different shapes and sizes (such as ellipsoids). In that case, it would be difficult to separate them using traditional methods like k-means or hierarchical clustering because they assume spherical shapes.Another benefit of using DENCLUE is its flexibility when dealing with incomplete data sets or missing values. It can estimate the density function even if some attributes are missing by utilizing only complete information available from other features.

Understanding Density-Based Clustering Methods

Density-based clustering is a popular technique used in machine learning for grouping similar data points together. Unlike other clustering algorithms, such as K-means or hierarchical clustering, density-based clustering does not require the number of clusters to be specified beforehand. Instead, it identifies areas of high-density within the dataset and groups points that fall within these regions. One well-known example of density-based clustering is DBSCAN (Density-Based Spatial Clustering of Applications with Noise). DBSCAN has been shown to outperform other methods in identifying clusters with irregular shapes and varying densities.

In addition, it can handle noisy data by labeling outliers as noise rather than forcing them into a cluster. However, one limitation of density-based clustering is its sensitivity to parameter tuning, which may impact the resulting clusters. Overall, understanding density-based clustering can be beneficial in various applications such as image segmentation and anomaly detection.

How Does DENCLUE Work?

The basic idea behind DENCLUE is simple – identify dense regions within datasets and group them together into distinct clusters. However, implementing this idea requires several steps:

Step 1: Density Estimation

In this step, we estimate densities for all data points using Gaussian kernels with different bandwidths (h). This process results in an n-dimensional probability distribution function (PDF), where n represents the number of dimensions/features present in our dataset.

Step 2: Attraction Basin Identification

After estimating densities for all data points, we need to identify attraction basins – regions where high-density areas converge towards lower-density areas – because these are the potential cluster centers. We use gradient ascent to identify these attraction basins.

Step 3: Cluster Assignment

Once we have identified all attraction basins, we assign each data point to its nearest basin using a distance metric such as Euclidean distance or Mahalanobis distance. This process results in clusters of varying sizes and shapes

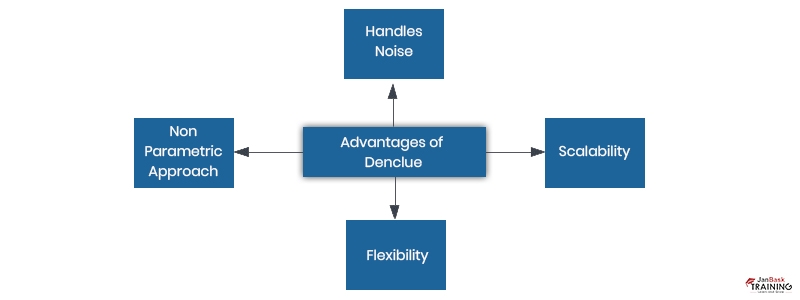

Advantages of DenClue

DenClue is considered on of the most powerful clustering algorithm in data mining that offers deveral advantages in data analysis and patter recognition tasks. Here are some of the key advantages of DenClue:

1. Handles Noise:

One significant advantage of using DENCLUE for clustering is its ability to handle noise effectively. It can differentiate between actual clusters and random noise by identifying areas with low-density values as outliers or noise.

2. Scalability:

DENCLUE can handle large datasets efficiently without compromising performance or accuracy. This makes it ideal for use in big data applications where processing speed and scalability are critical factors.

3. Flexibility:

DENCLUE offers flexibility when it comes to choosing distance metrics, kernel functions, and other parameters required for clustering analysis. This allows users to customize their analyses according to their specific needs.

4. Non-Parametric Approach:

Unlike traditional parametric methods such as K-Means that require assumptions about the underlying distribution of the dataset being analyzed, DENCLUE does not make any assumptions about the shape or size of clusters present in a dataset.

Disadvantages of DENCLUE

Despite being one of the powerful clustering algorithms in present times, Denclue has some limitations and disadvantages to consider:

1.Computational Complexity:

One major disadvantage associated with using DENCLUE is its computational complexity compared to other clustering algorithms like K-means or Hierarchical Clustering Algorithms(HCA). The algorithm requires more time than these algorithms due to its non-parametric nature; hence it may be unsuitable for real-time applications requiring quick results.

2.Sensitivity To Parameters:

Another disadvantage associated with using Density-based approaches like Denclue includes sensitivity towards parameter selection during cluster formation processes.The algorithm requires the selection of a kernel function, bandwidth parameter, and other parameters that can impact clustering accuracy. The choice of these parameters may be subjective and require expert knowledge.

3. Difficulty in Determining Optimal Parameters:

DENCLUE's non-parametric nature makes it difficult to determine optimal values for its various parameters such as the kernel function or bandwidth parameter. This could lead to suboptimal results if not well-tuned by an expert.

4. Limited Applicability:

DENCLUE is best suited for datasets with high-density regions separated by low-density areas; hence it may not perform well on datasets with uniform densities or those containing overlapping clusters.

Applications of DENCLUE Algorithm

DENCLUE has found applications in various fields such as:

  1. Image Segmentation:- Identifying regions within an image that belong to different objects or backgrounds.
  2. Anomaly Detection:- Identifying unusual patterns or behaviors within datasets that may indicate fraud, errors, or security breaches.
  3. Bioinformatics:- Analyzing DNA sequences to identify genetic mutations associated with diseases like cancer.
  4. Social Network Analysis:- Grouping individuals based on their social connections and interactions.

Data Science Training For Administrators & Developers

  • No cost for a Demo Class
  • Industry Expert as your Trainer
  • Available as per your schedule
  • Customer Support Available
cta9 icon


DENCLUE is a powerful density-based clustering algorithm that can effectively group similar data points together without requiring any prior knowledge about the number of clusters present in a dataset or their shape/size distribution. The algorithm's ability to handle large datasets with arbitrary shapes makes it ideal for many real-world applications such as image segmentation, anomaly detection, bioinformatics analysis, and social network analysis.
By understanding how DENCLUE works and its advantages/applications better, businesses can leverage this technique's power to extract valuable insights from their data sets more efficiently than ever before. UnderstandingDENCLUE clustering in data mining begins with understanding data science; you can get an insight into the same through our Data Science training.
