SchemaBinding In Sql Server -All You Need To Know



The process of associating a database view to underlying tables to directly place indexes on the view is schema binding in sql server. When using the view, this may result in significant performance advantages; however, there are some drawbacks to this tighter coupling. Let's dive into Schemabinding sql and learn more about its importance in SQL and key takeaways. You should check out the SQL career path guide to help you explore all your career options.

What is SchemaBinding SQL Server?

The procedure known as SCHEMABINDING binds the view to the schema of the tables underneath it. The base table or tables cannot be altered in a way that would affect the view definition when SCHEMABINDING is specified.

Performance Improvement Using SchemaBinding SQL Server

You can create an index to speed up data retrieval by using schema binding in sql server on a view.

Schemabinding SQL Server

Next, we will learn how Schemabinding works.

First, let us check how it works in functions.

CREATE FUNCTION dbo.fnGetUserID (@name varchar(10))

RETURNS INT

WITH RETURNS NULL ON NULL INPUT,

SCHEMA BINDING AS

BEGIN

  DECLARE @tempID INT

  SELECT @tempID = ID

  FROM dbo.tblUser

  WHERE FirstName = @name;

  RETURN @tempID;

END;

The function was created and strictly bound to database objects once the query was successful. Any operation, like dropping or modifying the table, will fail because it is tightly bound to objects.

Let’s rename the column of the tblUser table. It will throw an error as the function fnGetUserID is bound to this column.

Now let us implement the same thing in views.

Let us create the view first.

CREATE VIEW vw_Test WITH SCHEMABINDING AS

SELECT ID FROM dbo.tblUser;

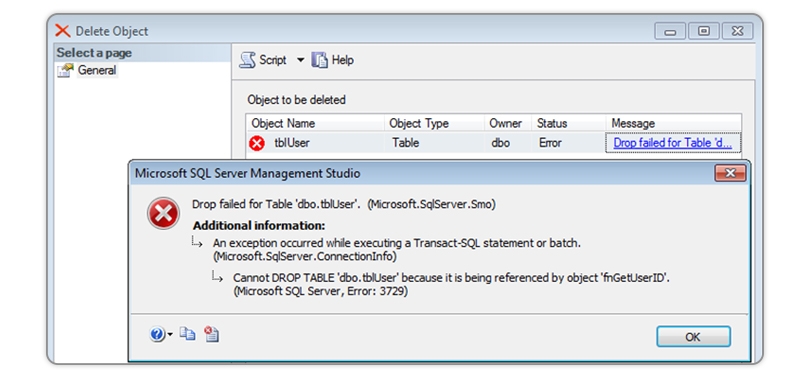

Here we create a view based on table blister. Now let’s drop the table tblUser and see what happens. It throws an error.

You can’t use “*” in views when you use SchemaBinding. See the following query; if you execute it, it will throw an error.

CREATE VIEW vw_Test WITH SCHEMABINDING AS

SELECT * FROM dbo.tblUser;

Your view needs to be bound in Schema if you want to create an index on it.We now know that when the SchemaBinding option is turned on, UDF/View is tightly bound to database objects.Second, SchemaBinding contributes to the enhancement of UDF and View performance. The query optimizer does not produce spool operators for the query execution plan when an object is SchemaBound.Spool operators aid the query optimizer in avoiding logical errors and improving query performance. Spool saves read data to our TempDB database. This procedure is helpful when performing complex calculations. Spool makes it possible to save the result and use it in the future to boost performance.

Take a look at the following example to create a simple UDF:

CREATE FUNCTION dbo.ComputeNum(@i int)

RETURNS int

BEGIN

  RETURN @i * 2 + 50

END

We did not include a SchemaBinding option in the preceding UDF. We are not gaining access to any tables or other database objects in that function. Do we need to add the SchemaBinding option in this scenario? Yes, the SchemaBinding option must be added because there is no way to guarantee that a function's underlying schema, as well as the schema of any underlying UDFs or Views that this UDF may call, has stayed the same since it was created. As a result, SQL Engine must derive these properties at runtime for each UDF execution. We do not attempt to derive these properties at runtime, improving performance, and mark the UDF as SchemaBinding for safe data access to avoid this performance penalty. Do you love working with data? Or want to pursue a career in the Microsoft SQL Server Database domain? But feel stuck with doubts? A comprehensive SQL DBA career path will help you explore all the career options.

Use of SchemaBinding in SQL Server

The process of associating a database view to underlying tables to directly place indexes on the view is schema binding in sql server. When using the view, this may result in significant performance advantages; however, there are some drawbacks to this tighter coupling.

Advantage of SchemaBinding in SQL Server

Let's say a function is binding to a table using schema. SchemaBinding has the following benefits:

  • It enhances the query execution plan.
  • Before inserting a table or view into the database, it checks the dependency objects. Additionally, if you attempt to delete the table; Schema binding in sql server will throw an error.

Disadvantages of SchemaBinding in SQL Server

A drawback of schema-binding a view is that it can only refer to other schema-bound views.

Conclusion

In the above write-up, we discussed different aspects of Schema binding in sql server. We have discussed its advantage, disadvantages, and its uses. Also, we have discussed its effect on the performance of the system. This will be a worthwhile read for people who want to study more about schema binding in SQL Server. Understanding the Schemabinding SQL begins with understanding SQL Server; you can get an insight about the same through our online SQL server training.
