Explain with a case study how to visualize the train and test data of a Decision Classification system in Python

844   Asked by SanjanaShah in Data Science, Asked on Nov 9, 2019

First we import the model and the dataset and split for training and testing

# Importing the libraries

import numpy as np

import matplotlib.pyplot as plt

import pandas as pd

# Importing the dataset

dataset = pd.read_csv('Social_Network_Ads.csv')

X = dataset.iloc[:, [2, 3]].values

y = dataset.iloc[:, 4].values

# Splitting the dataset into the Training set and Test set

from sklearn.cross_validation import train_test_split

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size = 0.25, random_state = 0)

# Feature Scaling

from sklearn.preprocessing import StandardScaler

sc = StandardScaler()

X_train = sc.fit_transform(X_train)

X_test = sc.transform(X_test)

Now we fit the model and predict the test data

model = DecisionTreeClassifier()

model.fit(X_train, y_train)

# Predicting the Test set results

y_pred = model.predict(X_test)

Now we evaluate the model

# Making the Confusion Matrix

from sklearn.metrics import confusion_matrix

cm = confusion_matrix(y_test, y_pred)

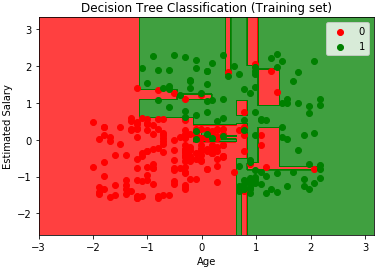

Now we visualize the training data

# Visualising the Training set results

from matplotlib.colors import ListedColormap

X_set, y_set = X_train, y_train

X1, X2 = np.meshgrid(np.arange(start = X_set[:, 0].min() - 1, stop = X_set[:, 0].max() + 1, step = 0.01),

                     np.arange(start = X_set[:, 1].min() - 1, stop = X_set[:, 1].max() + 1, step = 0.01))

plt.contourf(X1, X2, classifier.predict(np.array([X1.ravel(), X2.ravel()]).T).reshape(X1.shape),

             alpha = 0.75, cmap = ListedColormap(('red', 'green')))

plt.xlim(X1.min(), X1.max())

plt.ylim(X2.min(), X2.max())

for i, j in enumerate(np.unique(y_set)):

    plt.scatter(X_set[y_set == j, 0], X_set[y_set == j, 1],

                c = ListedColormap(('red', 'green'))(i), label = j)

plt.title('Decision Tree Classification (Training set)')

plt.xlabel('Age')

plt.ylabel('Estimated Salary')

plt.legend()

plt.show()

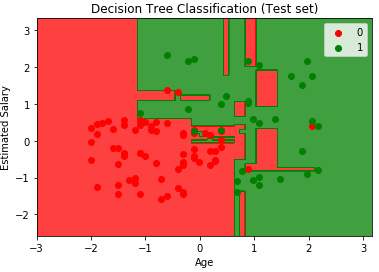

Now we visualize the test data

# Visualising the Test set results

from matplotlib.colors import ListedColormap

X_set, y_set = X_test, y_test

X1, X2 = np.meshgrid(np.arange(start = X_set[:, 0].min() - 1, stop = X_set[:, 0].max() + 1, step = 0.01),

                     np.arange(start = X_set[:, 1].min() - 1, stop = X_set[:, 1].max() + 1, step = 0.01))

plt.contourf(X1, X2, classifier.predict(np.array([X1.ravel(), X2.ravel()]).T).reshape(X1.shape),

             alpha = 0.75, cmap = ListedColormap(('red', 'green')))

plt.xlim(X1.min(), X1.max())

plt.ylim(X2.min(), X2.max())

for i, j in enumerate(np.unique(y_set)):

    plt.scatter(X_set[y_set == j, 0], X_set[y_set == j, 1],

                c = ListedColormap(('red', 'green'))(i), label = j)

plt.title('Decision Tree Classification (Test set)')

plt.xlabel('Age')

plt.ylabel('Estimated Salary')

plt.legend()

plt.show()



Answered by Sanjana Shah
